a.Application: supply emergency power for electrical appliances and equipments of 380V/220V, like fire equipment ,  primary  load ,  important  load ,  fire emergency lighting or other loads.

b.Specification range: 2.2KW-800KW
c.Detail specification: 2.2, 3.7, 5.5, 7.5, 11, 15, 18.5, 22, 30, 37, 45, 44, 75, 93, 110, 132, 160, 187, 200, 220, 250, 280, 315, 400, 500, 630, 800KW, etc.
d.Installation: floor type (standard power distribution box)

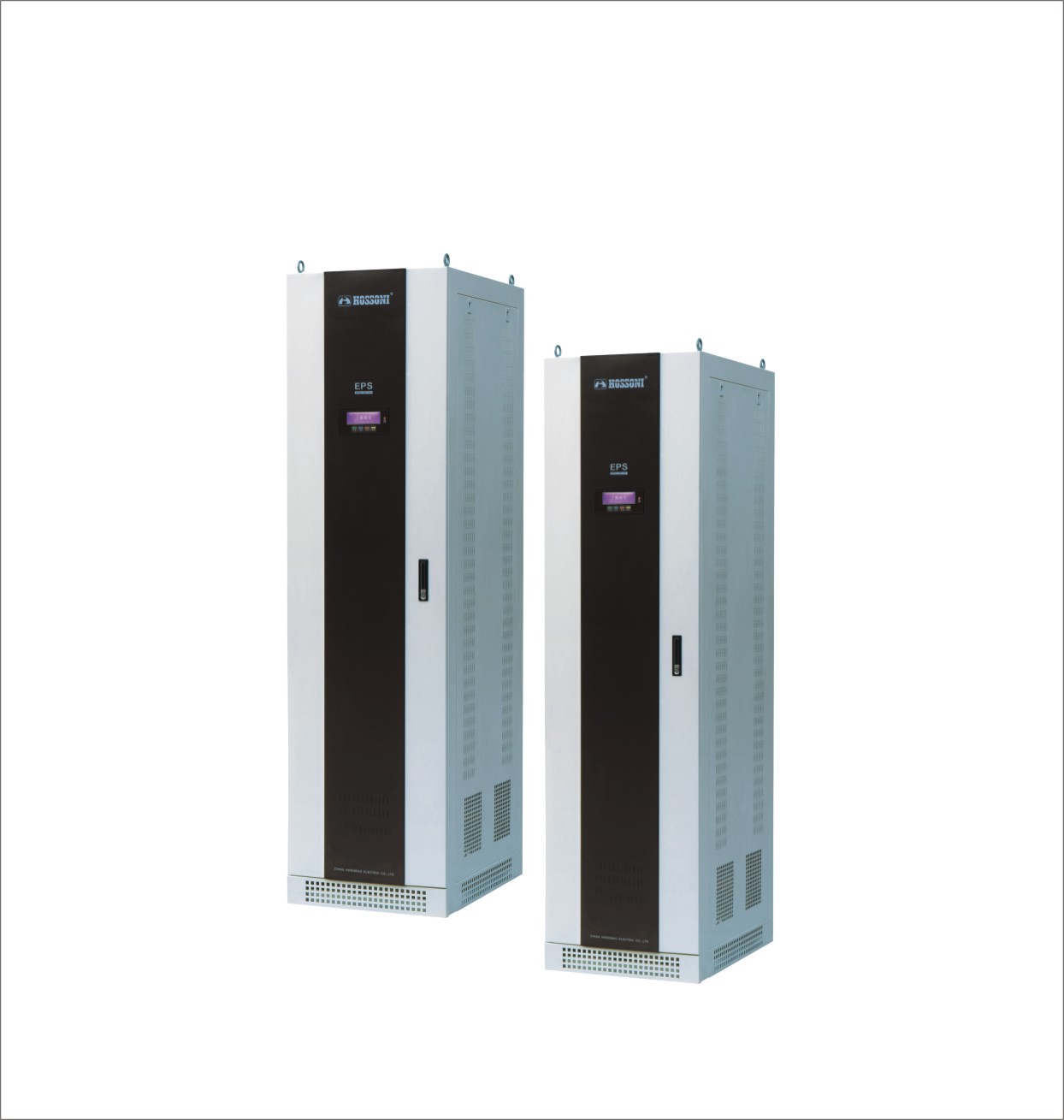

e.Standby time: 90~120min (standard setting), can be set with standby time according to design requirement.HBES series EPS is designed through cooperating  with  German  experts,  it  adopts integrated  modularization  inverter
manufactured by international  famous  manufacturer,  uses the latest  IGBT  inversion technology , CPU  control,  digital circuit  and high  integration  electronic element, it  is  the  high - tech  environmental protection type patent product  that
supplies the second or third power supply for primary  load,  extra  important  load,  fire  facility,  fire  emergency  lighting and so on.

Adopt the latest  IGBT  inversion  module and  high reliability integrated circuit, PWM technology, design of  Four in One , simple structure, can supply power for any inductive or capacitive loads, realize fire response, remote control
or floor intelligent control, fire central control; its main parts or elements  use  those  of  international  famous brand with high reliability; and its conductors and equipments  have  the  advantages  of  flame  retardant  property  or  no
burning.

Static state without noise, no smoke, no environment pollution, no risk of fire, automatic switching, realize on-duty without anybody, energy saving, no power consumption  at  non  emergency  power  supply,   stable  performance,
safety and reliability, long service life, low comprehensive cost and good ratio of performance and price compared with generator unit.

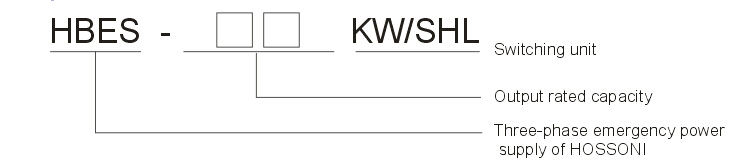

 Example:
1.HBES-18.5KW, three-phase emergency power supply, its output of sine wave rated capacity is 18.5KW;
2.HBES-11KW/SHL, switching unit, its output rated capacity is 11KW.

 Note:
1.HBES series is suitable for three-phase, single-phase or mixed electrical appliances, such as lift, water pump,
   fan, lighting, bond large screen, air condition, office equipment, finance equipment and so on.
2.Automatic switching equipment is optional.
3.If you need HBES series EPS functions such as fire response, remote monitoring, multi-circuit output, please
   indicate those when placing an order.
